#AA-5007   1/144 scale  M2-F2, HL-10, HL-20, X-23, X-24A, X-24B  Lifting bodies compile-set

@

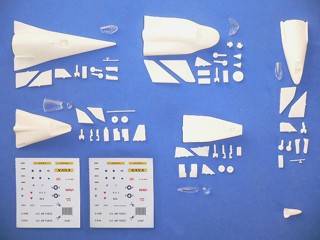

Model Kit Contents (click the image for larger photo)

Model Features

62 resin parts

+

Clear resin canopies, decal

@

@

Unit price: US$58

Shipping charge: US$6.50

Each model kit contents 1 sheet of decal. Extra decals can also be ordered.

Extra decal

US$1.50

@

Aircraft History and Specification

In 1957, NASA had investigated the problems associated with re-entry from space of missile nose cone. Engineers conceived the lifting body idea that by modifying a cone shape, aerodynamic lift could be produced to fly back from space rather than plunge to the earth. This study led to the design known as the M-2, a "M"odified half-cone, rounded on bottom and flat on top, with twin tail-fins. This configuration allowed lifting body to be landing on a runway rather than parachuting into the ocean. In 1962, NASA built the first lifting prototype, the unpowered M2-F1. With the success of M2-F1 program, NASA signed contract to Northrop to build the rocket engined M2-F2 and HL-10. In 1963, USAF joined the program. Martin was contracted to build the X-23 test-bed and the piloted X-24A. In 1972, the X-24A was modified to X-24B with shape in delta platform to validate the Space Shuttle landing concept. In 1990, the lifting body program was revived with the HL-20 PLS (Personal Launch System). It is a reentry vehicle that was designed to complement the Space Shuttle orbiter.

Type:

Purpose:

Wingspan.:

Length:

Engine:

@

@

@

Max.speed:

Crew:

Lifting bodies

To verify the theoretical advantage of the lifting body configuration.

9ft.8in.(M2-F2) / 13ft.7in.(HL-10) / 4ft.(X-23) / 13ft.8in.(X-24A) / 19ft.2in.(X-24B) / 23ft.6in.(HL-20)

22ft.2in.(M2-F2) / 21ft.2in.(HL-10) / 6ft.8in.(X-23) / 24ft.6in.(X-24A) / 37ft.6in.(X-24B) / 29ft.(HL-20)

1x Reaction Motors XLR-11 rocket engine (M2-F2 / HL-10)

1x Convair SLV-3 Atlas ICBM (X-23)

1x Thiokol XLR11-RM-13 rocket engine (X-24A / X-24B)

1x Martin Titan III (HL-20)

466mph(M2-F2) / 1228mph(HL-10) / 16500mph(X-23) / 1036mph(X-24A) / 1164mph(X-24B)

1(M2-F2) / 1(HL-10) / none(X-23) / 1(X-24A) / 1(X-24B) / 10(HL-20)

@
